DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable

Name: DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT200-B
Availability: InStock

Nama merek:	RUYA
Nomor Model:	DT200-B
Moq:	1 set
harga:	dapat dinegosiasikan
Waktu Pengiriman:	2-3 bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001

Table Diameter:

Ф240mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Akurasi Putar:

±3″

Positioning Error:

±5″

Pengulangan posisi:

± 5 ″

Structure:

For both horizontal and vertical use

Cincin slip pengguna:

Dapat disesuaikan

Kemasan rincian:

Kotak Kayu

Menyediakan kemampuan:

≤3 set, 3 bulan

Menyoroti:

10kg inertial test turntable

Single Axis inertial test turntable

High Precision test turntables

Deskripsi Produk

DT200-B High Precision Payload 10kg Single-axis Inertial Test Turntable

Product Description

DT200-B high-precision single-axis test turntable is mainly used to provide high-precision rotary reference during testing. It has the characteristics of high precision, stable structure, adaptability to different load test requirements, and automatic centering.

Product Parameters

Specification
1	Load Weight	10Kg
2	Table Diameter	Ф240mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±5″
7	Positioning Repeatability Of Angular Position	±5″
8	Rate Range	±0.0001°/s~±200°/s；
9	Rate Resolution	0.0001°/s
10	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
11	Maximum Angular Acceleration	≥100°/s²；
12	Structure	For both horizontal and vertical use
13	User Slip Ring	Customizable

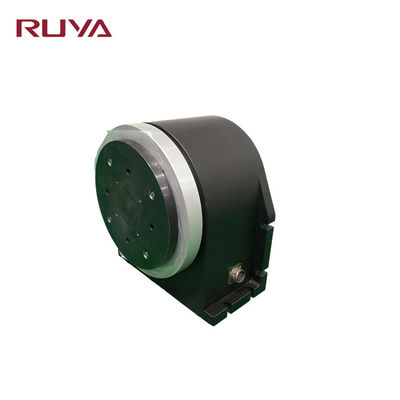

DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable 0

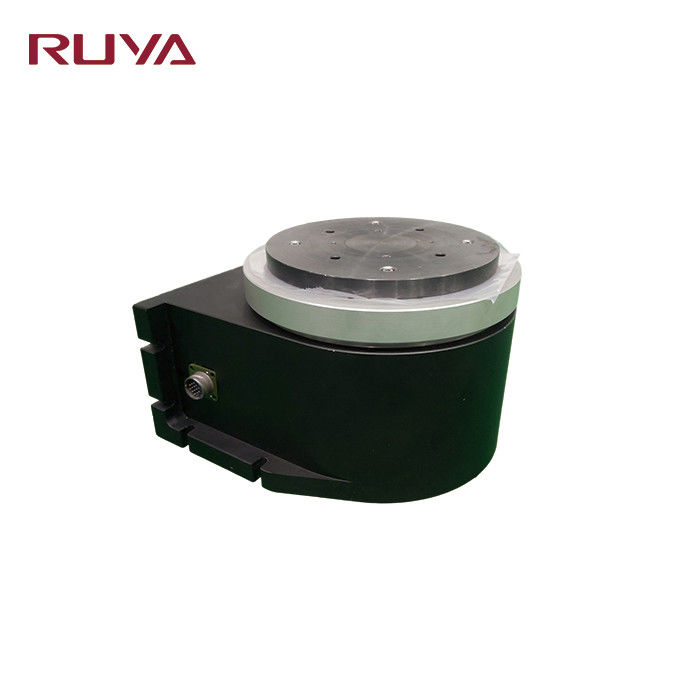

DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable 1
