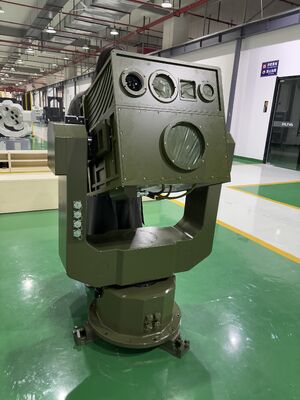

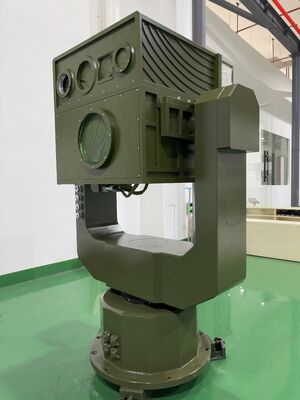

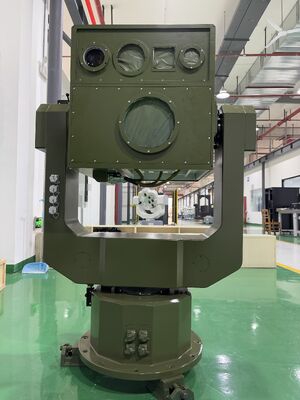

High-Precision 0.1 mrad Servo Tracking Turntable for Low-Altitude Security with 65kg Load Capacity

High-Precision 0.1 mrad Servo Tracking Turntable for Low-Altitude Security with 65kg Load Capacity

High-Precision 0.1 mrad Servo Tracking Turntable for Low-Altitude Security with 65kg Load Capacity

Nama merek:	RUYA
Moq:	1 Set
Harga:	dapat dinegosiasikan
Waktu Pengiriman:	3-4 bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001

Berat meja putar:

<100kg

Kapasitas Beban:

>65kg

Dimensi beban:

Kedalaman 650mm, Lebar 580mm, Tinggi 580mm

Kecepatan maksimum:

Azimut: 180°/dtk Nada: 60°/dtk

Akselerasi maksimal:

Azimuth 120°/dtk² Ketinggian: 60°/dtk²

Kisaran Azimuth:

±170°

Kisaran nada:

-10° hingga +90°

Akurasi pelacakan:

0,1 mrad (RMS)

Kemasan rincian:

KOTAK KAYU

Menyediakan kemampuan:

≤3 set, 3 bulan

Deskripsi Produk

High-precision Servo Low-altitude Security Tracking Turntable Product Overview This high-precision servo tracking turntable is engineered for low-altitude security applications, delivering stable, reliable, and rapid pointing and tracking motion capabilities. Featuring a modular design, it serves as an advanced carrier and motion execution platform for various systems including radar linkage, spectrum direction finding, photoelectric detection, countermeasures, and strike
