2DTGZ280C Dual Axis Satellite Tracking Turntable With 80kg Payload

Name: 2DTGZ280C Dual Axis Satellite Tracking Turntable With 80kg Payload
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DTGZ280C
Availability: InStock

Nama merek:	RUYA
Nomor Model:	2DTGZ280C
Moq:	1 set
harga:	dapat dinegosiasikan
Waktu Pengiriman:	3-4 Bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001

Rentang putar sudut （bingkai luar）:

± 355 °

Angle Rotary Range（Inner frame）:

-20°~+95°

Maximum Angular Acceleration( Inner frame):

≥1°/s²

Maximum Angular Acceleration( Outer frame):

≥1°/s²

Positioning Error:

±3″

Code Disc Resolution:

1″

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error within 10 seconds <0.5″, error within 60 minutes <1″;

Untuk target ruang, akurasi pelacakan loop terbuka (RMS):

Sumbu tunggal <3 ″

Kemasan rincian:

Kotak Kayu

Menyediakan kemampuan:

≤3 set, 3 bulan

Menyoroti:

Tracking Turntable 2 axis

Satellite Tracking Turntable

80kg 2 axis turntable

Deskripsi Produk

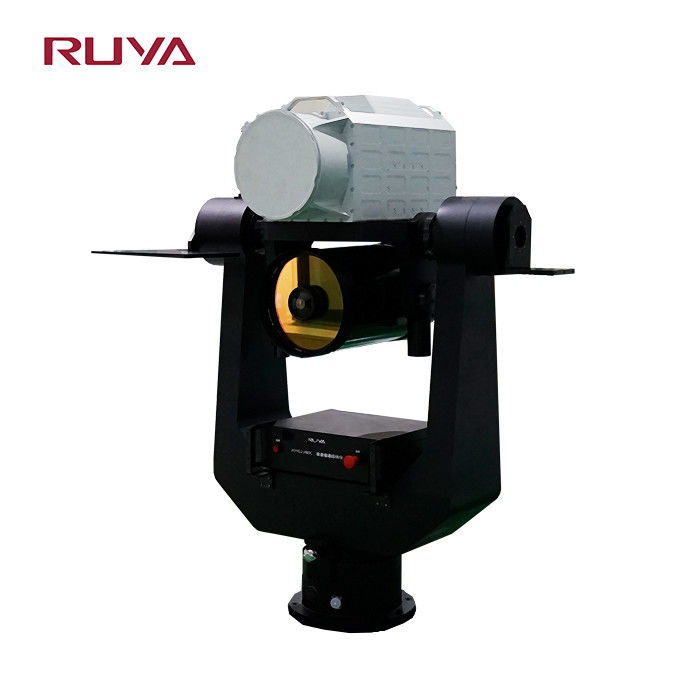

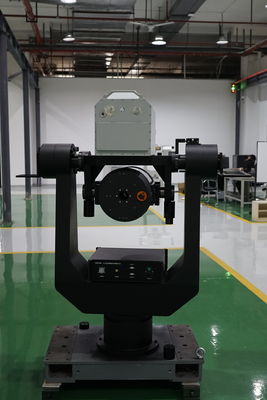

2DTGZ280C Dual-axis Satellite Tracking Turntable With 80kg Payload

Product Description

2DTGZ280C dual-axis tracking turntable adopts a high-rigidity tabletop design and is equipped with an azimuth axis (X) and pitch axis (Y) dual-degree-of-freedom motion system to meet the dynamic testing needs of precision components, optical components and inertial navigation equipment. The device supports position control, rate swing and dynamic tracking modes. Combining high-resolution encoder and low-friction drive technology ensures no return error during the test process, providing a reliable dynamic test platform for scientific research institutes.

Product Parameters

Specification
1	Load Weight	80Kg
2	Angle Rotary Range	Outer frame:±355°
2	Angle Rotary Range	Inner frame:-20°~+95°
3	Rotary Accuracy Of Dual-Axis	±3″
4	Perpendicularity Of Dual-Axis	±3″
5	Positioning Error Of Angular Position	±3″
6	Positioning Repeatability Of Angular Position	±2″
7	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
8	Maintain Precision Tracking Speed	Orientation: ≥2°/s, maximum ≥10°/s
8	Maintain Precision Tracking Speed	Pitch: ≥1°/s, maximum ≥4°/s;
9	Maximum Angular Acceleration	Inner frame: ≥1°/s²
9	Maximum Angular Acceleration	Outer frame: ≥1°/s²
10	Code Disc Resolution	1″
11	Zero Point	With code disc zero point
12	For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″;
13	For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis<3″

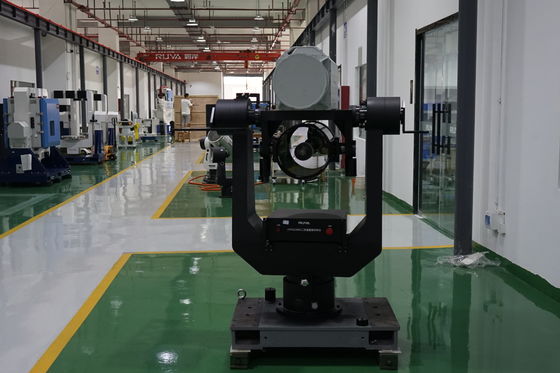

2DTGZ280C Dual Axis Satellite Tracking Turntable With 80kg Payload 0

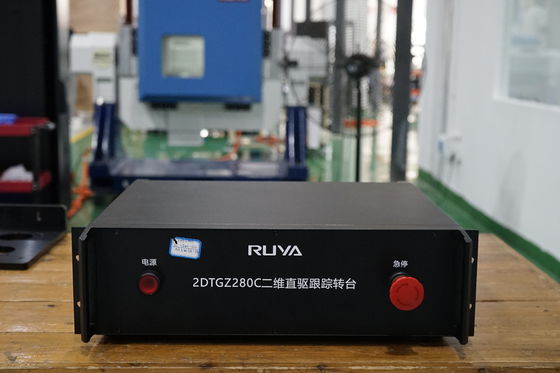

2DTGZ280C Dual Axis Satellite Tracking Turntable With 80kg Payload 1
