2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device

Name: 2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ/2
Availability: InStock

Nama merek:	RUYA
Nomor Model:	2-STGZ/2
Moq:	1 SET
Harga:	dapat dinegosiasikan
Waktu Pengiriman:	3 bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001

Rentang Rotasi Azimuth:

-90º~+90°

Rentang Rotasi Pitch:

-5°~+85°

Akurasi Penunjuk (Statis):

10″ (3σ)

Pengulangan:

2″

Goyangan Sudut Sumbu Vertikal:

≤2″

Goyangan Sudut Sumbu Horizontal:

≤3″

Resolusi Pengukuran Posisi Sudut:

0,0001 °

Akurasi Pengukuran Posisi Sudut:

≤5″

Kemasan rincian:

Kotak Kayu

Menyediakan kemampuan:

≤3 set, 3 bulan

Deskripsi Produk

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device

Product Description

The 2-STGZ/2 two-dimensional tracking turntable has two degrees of motion freedom: azimuth and pitch.

It is a frame-type U-T structure two-dimensional tracking device, primarily used for tracking unmanned aerial vehicles (UAVs).

Product Parameters

1. Turntable Structure: The azimuth axis adopts a "T" shaped structure. The pitch axis adopts a "U" shaped ring frame structure.

2. Azimuth Rotation Range: -90º~+90° (to center point)

3. Pitch Rotation Range: -5°~+85°

4. Zero Point: Equipped with a code disk zero point

5. Pointing Accuracy (Static): 10″ (3σ)

6. Repeatability: 2″

7. Vertical Axis Angular Wobble: ≤2″

8. Horizontal Axis Angular Wobble: ≤3″

9. Angular Position Measurement Resolution: 0.0001°

10.Angular Position Measurement Accuracy: ≤5″

11.Load size: Two Φ250

12. Load weight: 30kg, double lens barrel

13. Turntable weight: 45kg

14. Limits: Dual protection with mechanical and electronic limits

15. Tracking error: <3″

16. Maximum azimuth speed: ≥20°/s;

17. Maximum azimuth tracking speed: ≥2°/s;

18. Maximum pitch speed: ≥20°/s;

19. Maximum pitch tracking speed: ≥2°/s;

20. Maximum azimuth tracking acceleration: ≥2°/s;

21. Maximum pitch tracking acceleration: ≥2°/s.

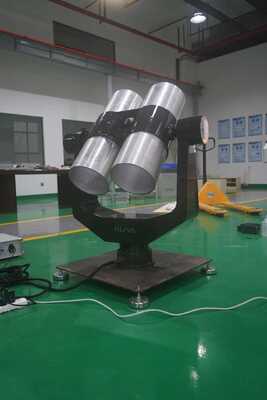

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 0

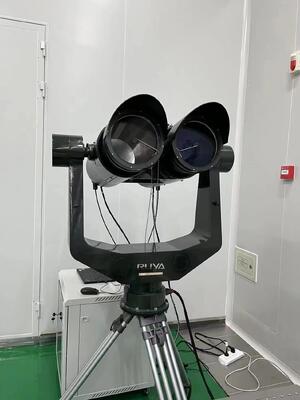

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 1

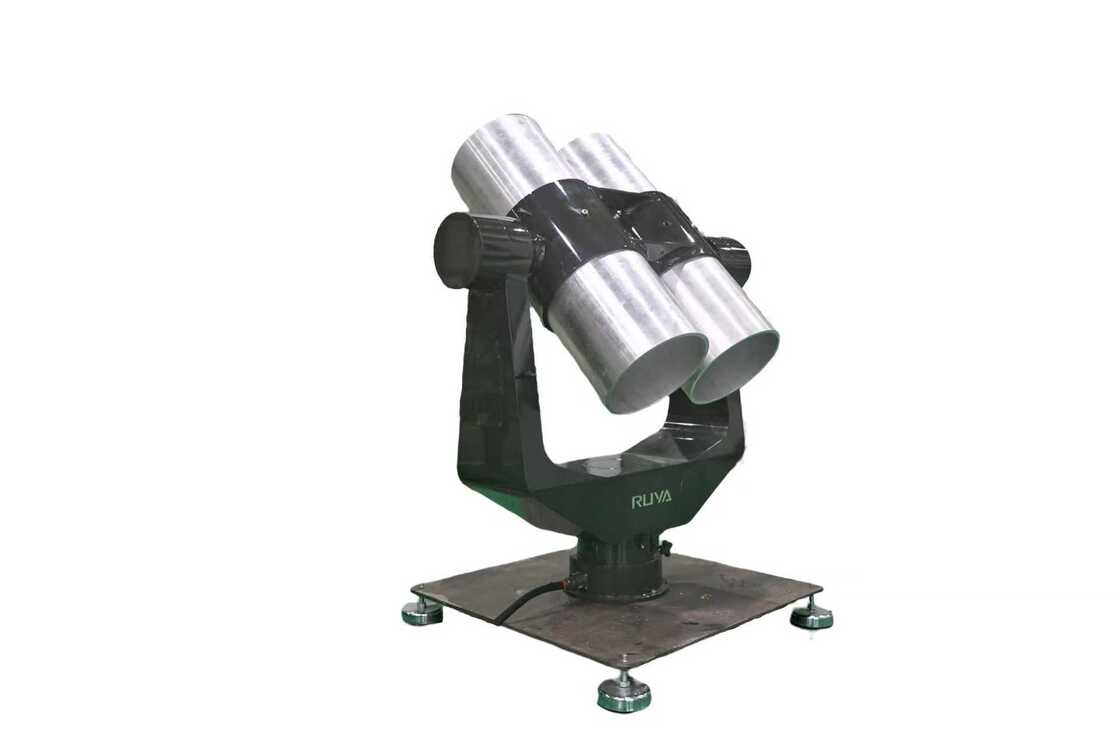

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 2

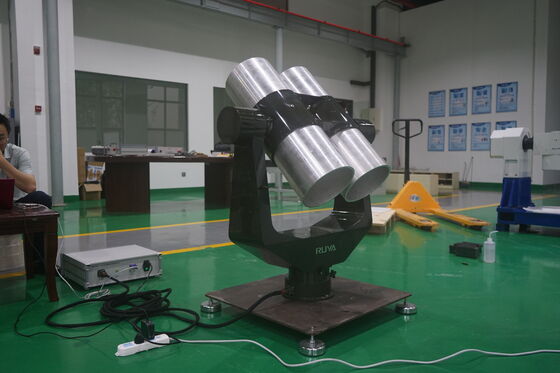

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 3

Our customers

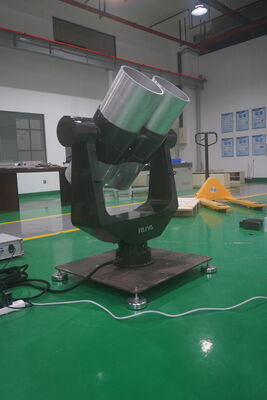

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 4
