Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device

Nama merek:	RUYA
Moq:	1 SET
Harga:	dapat dinegosiasikan
Waktu Pengiriman:	3 bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001

Beban berat:

150kg

Akurasi Putar:

±3″

Kesalahan penentuan posisi:

±3″

Pengulangan posisi:

± 2 ″

Rentang Putar Sudut (azimut）:

± 280 °

Rentang putar sudut （pitch）:

-5 ° ~+95 °

Resolusi posisi sudut:

0,0001 °

Resolusi Disk Kode:

1 ″

Kemasan rincian:

Kotak Kayu

Menyediakan kemampuan:

≤3 set, 3 bulan

Deskripsi Produk

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device

Product Description

The satellite tracking turntable has two degrees of freedom of movements in azimuth axis and pitch axis, while eliminating the effects of Earth's self-rotation. It is used together with payloads such as satellite antennas and optical systems to capture, point , and track stars, satellites, and other space targets.

Product Parameters

Specification
1	Load Weight	150Kg
2	Angle Rotary Range	azimuth:±280°；
2	Angle Rotary Range	pitch:-5°~+95°
3	Rotary Accuracy Of Dual-Axis	±3″
4	Positioning Error Of Angular Position	±3″
5	Positioning Repeatability Of Angular Position	±2″
6	Resolution Of Angular Position	0.0001°
7	Rate Accuracy	ω≤1°/s , 2×10^-3 (1° average)
		1°/s≤ω<10°/s , 2×10^-4 (10° average)
		ω≥10°/s , 2×10^-5 (360° average)
8	Maintain Precision Tracking Speed	10°/s≥azimuth≥1″/s；
8	Maintain Precision Tracking Speed	5°/s≥pitch≥1″/s
9	Maximum Angular Acceleration	pitch:≥2°/s²；
9	Maximum Angular Acceleration	azimuth:≥6°/s²
10	Code Disc Resolution	1″
11	Zero Point	With code disc zero point
12	For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″;
13	For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis<5″

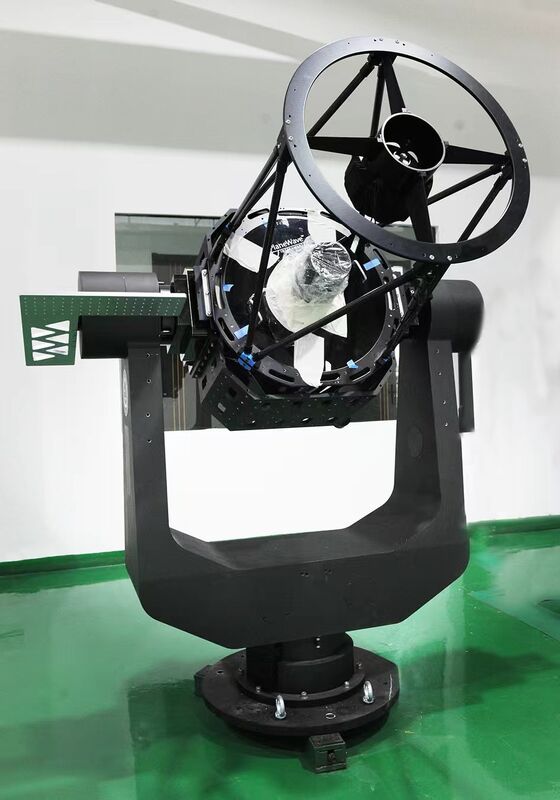

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device 0

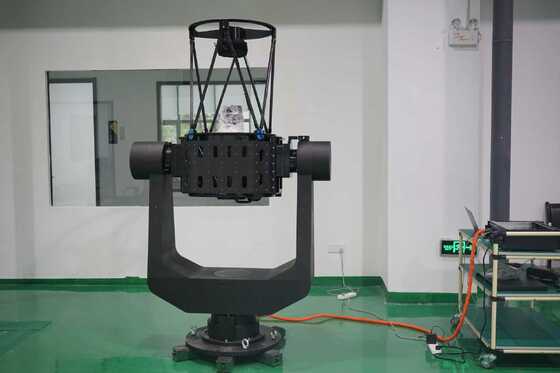

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device 1

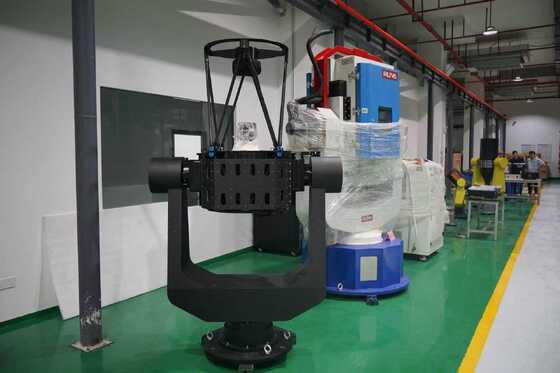

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device 2

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device 3
