Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device

Nama merek:	RUYA
Moq:	1 SET
Harga:	dapat dinegosiasikan
Waktu Pengiriman:	3 bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001

Beban berat:

50KG

Ukuran meja:

550mm×550mm

Akurasi Putar:

± 2 ″

Perpendikularitas:

±3″

Pengulangan posisi:

± 1,5 ″

Rentang putar sudut （azimuth）:

Rotasi terus menerus 360°

Rentang putar sudut （pitch）:

± 45 °

Resolusi tampilan:

0,0001 °

Kemasan rincian:

Kotak Kayu

Menyediakan kemampuan:

≤3 set, 3 bulan

Deskripsi Produk

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device

Product Description

The dual-axis manual turntable is mainly used for static attitude simulation, testing and calibration of inertial devices and components.

Product Parameters

Specification
1	Load Weight	50Kg
2	Table Size	550mm×550mm
3	Table Flatness	0.02mm
5	Rotary Accuracy Of Dual-Axis	±2″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±2″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±1.5″
10	Angle Rotary Range	Azimuth:360° continuous rotation
10	Angle Rotary Range	Pitch:±45°
11	Display Mode	Degree:0.0000-359.9999°
		Degrees, minutes and seconds:0°0′0″-359°59′59″
		Radian:0.0000-6.2832
12	Display Resolution	0.0001°
13	Lift Range	900+250mm

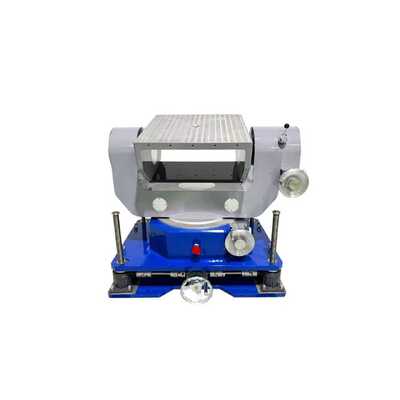

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 0

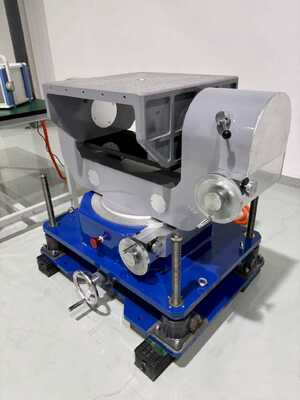

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 1

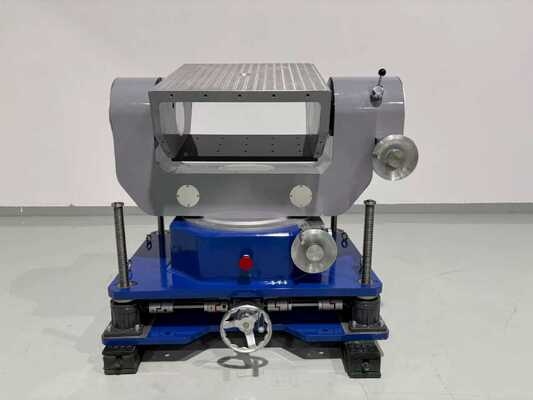

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 2

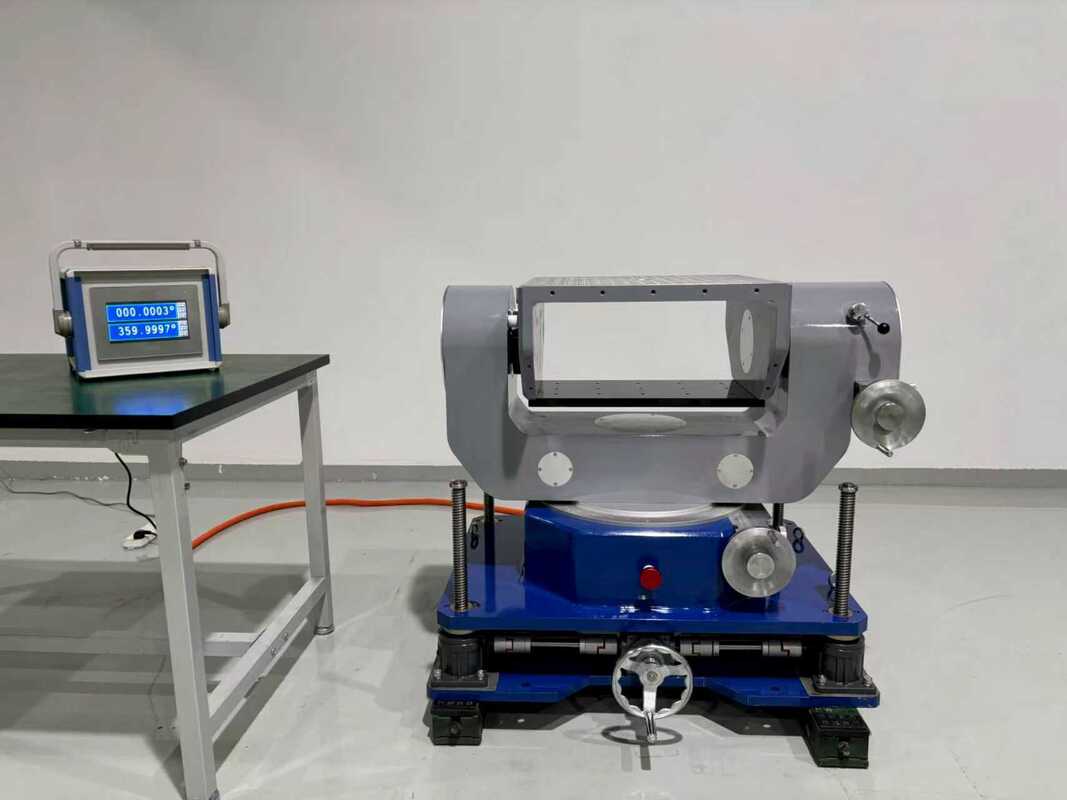

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 3

Our customers

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 4
