2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop

Nama merek:	RUYA
Moq:	1 SET
Harga:	dapat dinegosiasikan
Waktu Pengiriman:	2-3 bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001

Beban berat:

160kg

Diameter Meja:

Ф805mm

Kerataan meja:

0.02mm

Runout meja:

0.02mm

Akurasi Putar:

± 2 ″

Perpendikularitas:

± 10 ″

Kesalahan Pemosisian Posisi Sudut (bingkai luar):

± 2 ″

Kesalahan Pemosisian Posisi Sudut (bingkai bagian dalam):

± 2 ″

Kemasan rincian:

Kotak Kayu

Menyediakan kemampuan:

≤3 set, 3 bulan

Deskripsi Produk

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop

Product Description

The 2D micro stepping turntable has two degrees of motion freedom in azimuth (X) and pitch (Y). It is a tabletop two-dimensional precision test equipment, mainly used for testing and calibration of inertial devices and components, such as fiber optic gyroscopes and inertial measurement units (IMUs).

Product Parameters

Specification
1	Load Weight	160Kg
2	Table Diameter	Ф805mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±2″
6	Perpendicularity Of Dual-Axis	±10″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±2″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.001°/s~20°/s；
10	Rate Range	outer frame:0.001°/s~20°/s；
11	Rate Accuracy	ω≤1°/s , 2×10^-3 (1° average)
		1°/s≤ω<10°/s , 2×10^-4 (10° average)
		ω≥10°/s , 2×10^-5 (360° average)
12	Working Temperature Range	-55°C~＋80°C

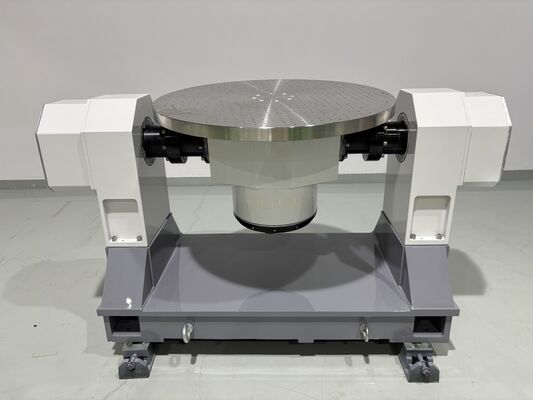

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 0

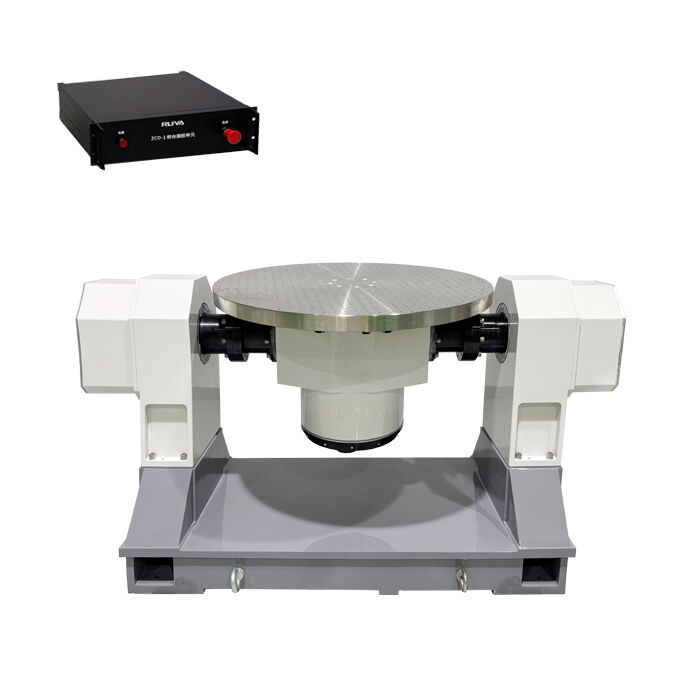

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 1

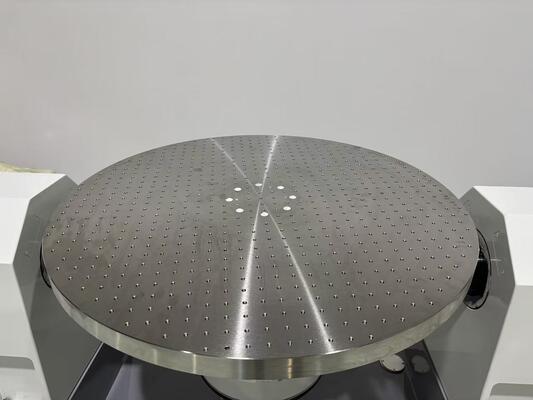

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 2

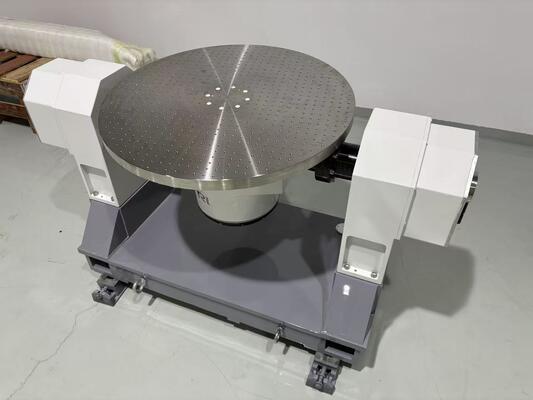

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 3
