Mesin putar pelacak
Created with Pixso. High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking
High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking
  • Nama
  • Nama

High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking

Nama merek: RUYA
Moq: 1 Set
Harga: dapat dinegosiasikan
Waktu Pengiriman: 3-4 bulan
Ketentuan Pembayaran: T/T
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
ISO 9001
Bukaan teleskop:
≥600mm
Kisaran nada:
-5° hingga 95
Batas mekanis nada:
-10º hingga +100°
Rentang Rotasi Azimuth:
-270° hingga 270°
Resolusi posisi sudut:
≤ 0,36″
Akurasi Posisi:
≤ 2″
Pengulangan:
≤ 2″
Menunjuk Akurasi:
<5″
Kemasan rincian:
KOTAK KAYU
Menyediakan kemampuan:
≤3 set, 3 bulan
Menyoroti:

direct-drive satellite tracking turntable

,

dual-axis tracking turntable with warranty

,

wide azimuth range tracking turntable

Deskripsi Produk

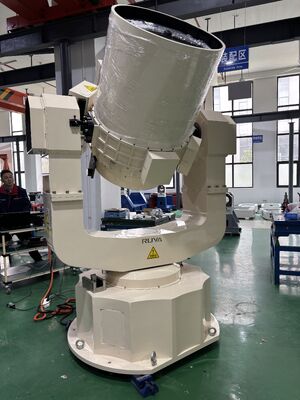

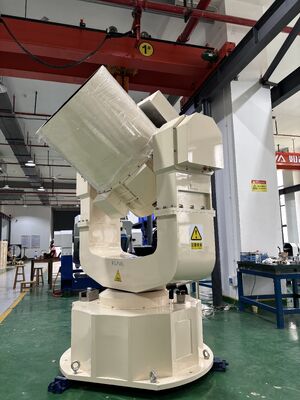

Direct-drive Dual-axis Tracking Turntable
Product Overview

The direct-drive dual-axis tracking turntable is a TL-type two-dimensional tracking device with two degrees of freedom (azimuth and pitch). It simulates satellite pointing and attitude on the ground while eliminating the effects of Earth's rotation. This system serves as a ground receiving station for quantum communication and laser communication satellites, working in conjunction with satellite transmitters to complete satellite-to-ground quantum and laser communication operations.

With customer-defined software control and guidance designs, the turntable is capable of tracking low-orbit satellites with high precision and reliability.

Technical Specifications
  • Telescope aperture: ≥600mm
  • Sight axis pointing capability
  • Dual protection: mechanical limit and electronic limit
  • Pitch range: -5° to 95°
  • Pitch mechanical limit: -10º to +100°
  • Azimuth rotation range: -270° to 270°
  • Angular position resolution: ≤ 0.36″ (dual-axis)
  • Positioning accuracy: ≤ 2″ (3σ, dual-axis)
  • Repeatability: ≤ 2″ (3σ, dual-axis)
  • Zero position setting capability with real-time absolute position feedback via RS422
  • Tracking speed: Azimuth 0.004°/s～10°/s; Pitch 0.004°/s～2°/s
  • Tracking acceleration: Azimuth 0°/s²～1.5°/s²; Pitch 0°/s²～1°/s²
  • Pointing accuracy: <5″ (1σ) @ elevation angle 20°～80°
Environmental Specifications
  • Working temperature: -40℃～+60℃
  • Storage temperature: -55℃～+70℃
Note: Environmental specifications can be customized according to requirements.
High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking 0 High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking 1 High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking 2 High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking 3 High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking 4 High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking 5 High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking 6
