2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable

Nama merek:	RUYA
Nomor Model:	2DT600GZ
Moq:	1 set
harga:	dapat dinegosiasikan
Waktu Pengiriman:	3-4 Bulan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO 9001

Beban berat:

Diameter Meja:

Ф600mm

Kerataan meja:

0,02mm

Runout meja:

0,02mm

Kesalahan penentuan posisi (bingkai luar):

Kesalahan penentuan posisi (bingkai dalam):

± 2 ″

Akselerasi Sudut Maksimal (dalam kerangka):

≥30 °/s²

Akselerasi sudut maksimum （bingkai luar）:

≥30 °/s²

Kemasan rincian:

Kotak Kayu

Menyediakan kemampuan:

≤3 set, 3 bulan

Menyoroti:

Tracking 2 axis turntable

Test 2 axis turntable

Inertial Navigation dual axis turntable

Deskripsi Produk

2DT600GZ Dual-axis Tracking Inertial Navigation Test Turntable

Product Description

The dual-axis tracking turntable has two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). It is a tabletop two-dimensional precision testing equipment. It is mainly used for testing the position, speed swing, tracking and other functions of precision components and components.

Product Parameters

Specification
1	Load Weight	50Kg
2	Table Diameter	Ф600mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.001°/s~15°/s；
10	Rate Range	outer frame:0.001°/s~15°/s；
11	Angle Rotary Range	outer frame: ±90°
11	Angle Rotary Range	inner frame: ±170°
12	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
13	Maximum Angular Acceleration	inner frame:≥30°/s²；
13	Maximum Angular Acceleration	outer frame:≥30°/s²

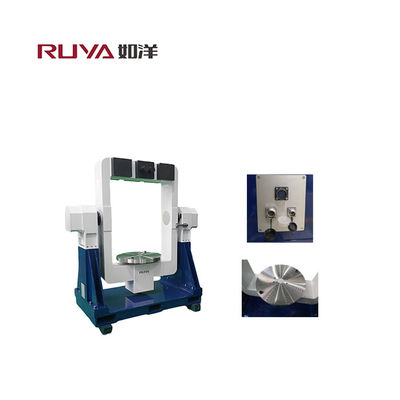

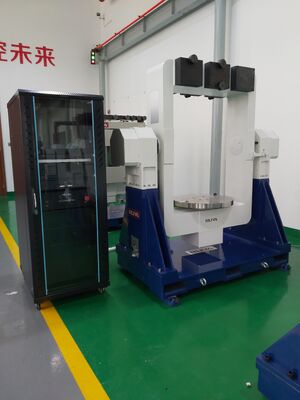

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable 0

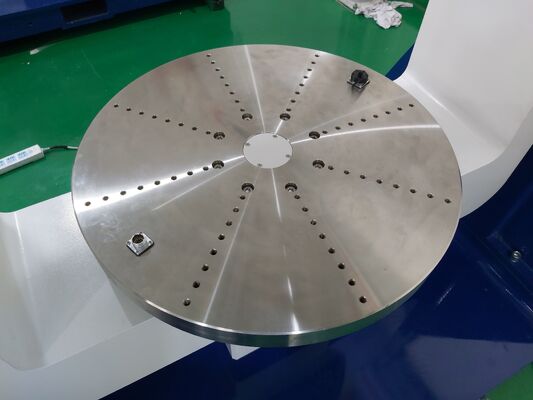

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable 1
